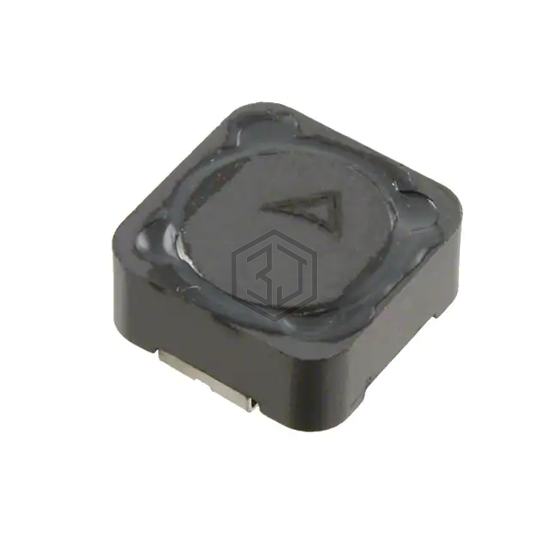

FIXED IND 220UH 800MA 400MOHM SM
B82477G2224M000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 220UH 800MA 400MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 800 mA.
In Stock: 535
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 400mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.484" L x 0.484" W (12.30mm x 12.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for B82477G2224M000 and get a quote within 24 hours.
