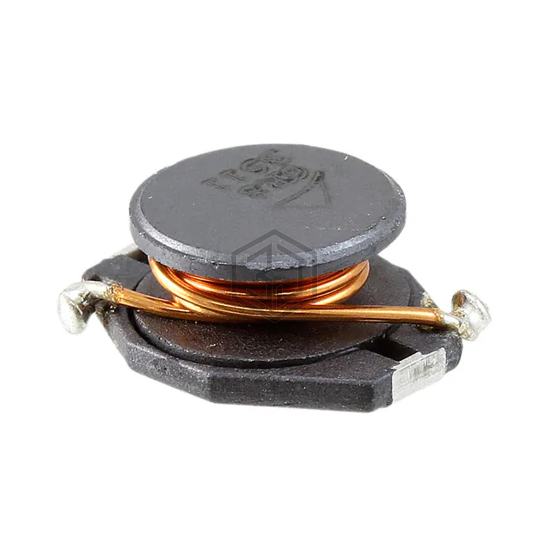

FIXED IND 1MH 330MA 2.15 OHM SMD
B82476B1105M100 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 1MH 330MA 2.15 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 330 mA.
In Stock: 740
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 330 mA |
| Current - Saturation (Isat) | 300mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.15Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Height - Seated (Max) | 0.200" (5.08mm) |
Submit your RFQ for B82476B1105M100 and get a quote within 24 hours.
