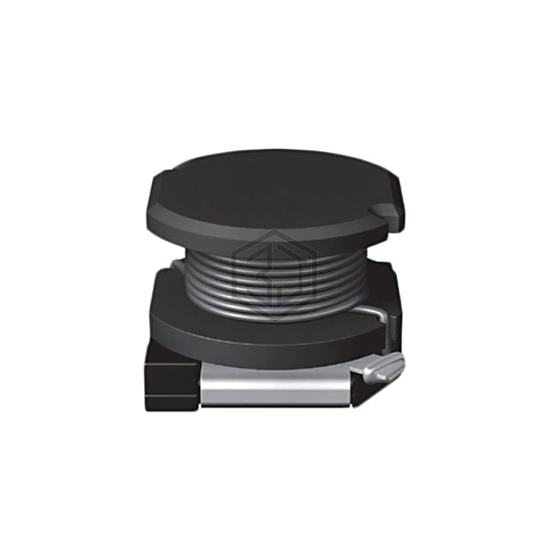

FIXED IND 33UH 1.2A 130 MOHM SMD
B82473A1333K000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 33UH 1.2A 130 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 1.2 A.
In Stock: 1,771
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 130mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.327" L x 0.287" W (8.30mm x 7.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
Submit your RFQ for B82473A1333K000 and get a quote within 24 hours.
