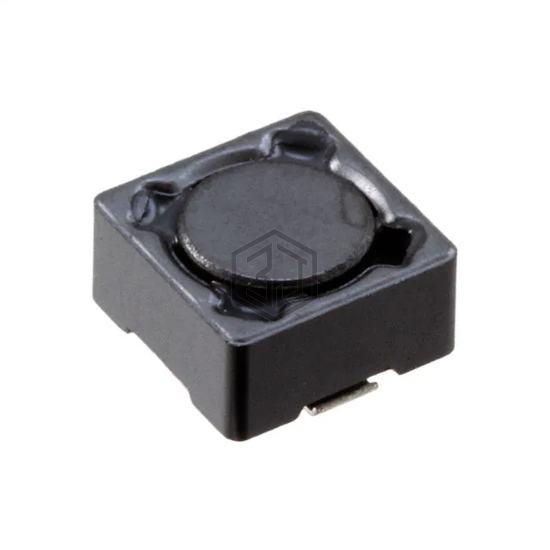

FIXED IND 1MH 200MA 3.85 OHM SMD
B82472G6105M000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 1MH 200MA 3.85 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 200 mA.
In Stock: 2,683
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | 150mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.85Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for B82472G6105M000 and get a quote within 24 hours.
