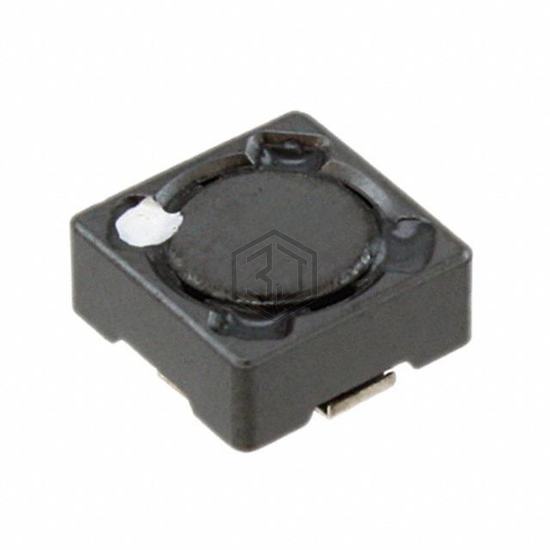

FIXED IND 150UH 490MA 800MOHM SM
B82472G4154M000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 150UH 490MA 800MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 490 mA.
In Stock: 2,651
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 490 mA |
| Current - Saturation (Isat) | 350mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 800mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Submit your RFQ for B82472G4154M000 and get a quote within 24 hours.
