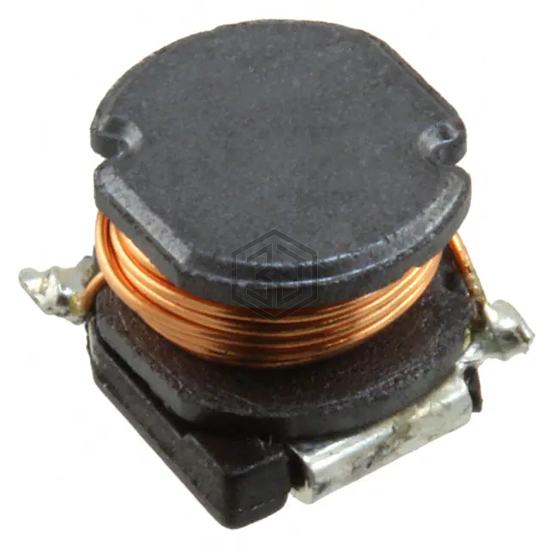

FIXED IND 100UH 520MA 700MOHM SM
B82471A1104K000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 100UH 520MA 700MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 520 mA.
In Stock: 1,645
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | 600mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.240" L x 0.220" W (6.10mm x 5.60mm) |
| Height - Seated (Max) | 0.193" (4.90mm) |
Submit your RFQ for B82471A1104K000 and get a quote within 24 hours.
