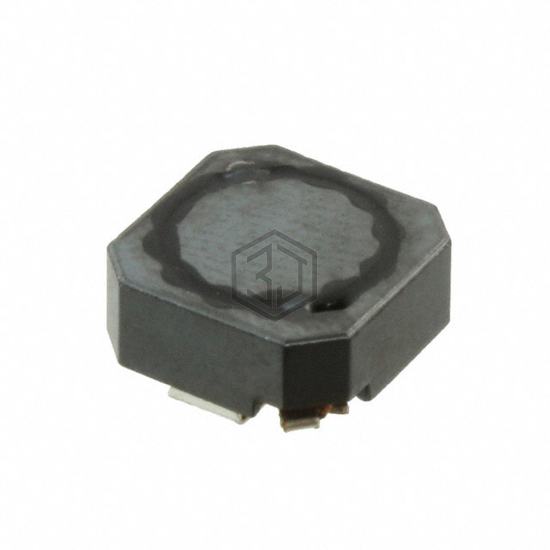

FIXED IND 2.2UH 6.5A 10 MOHM SMD
B82464G4222M000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 2.2UH 6.5A 10 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 6.5 A.
In Stock: 99
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.5 A |
| Current - Saturation (Isat) | 7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 10mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 72MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for B82464G4222M000 and get a quote within 24 hours.
