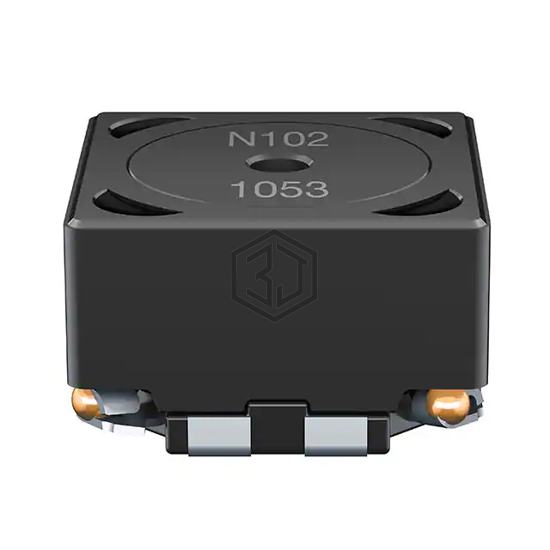

DUAL INDUCTOR 10X10, 2.2 UH
B82464D6222M000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. DUAL INDUCTOR 10X10, 2.2 UH. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 6.17 A.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.17 A |
| Current - Saturation (Isat) | 13.85A |
| Shielding | Shielded |
| DC Resistance (DCR) | 21mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Height - Seated (Max) | 0.248" (6.30mm) |
