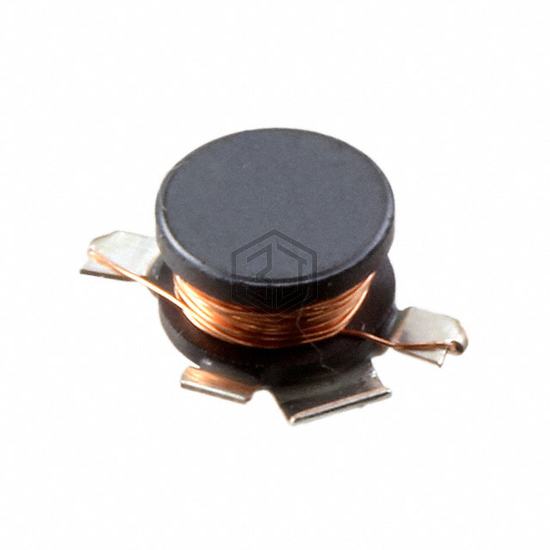

FIXED IND 4.7UH 1.65A 80MOHM SMD
B82462A4472M000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 4.7UH 1.65A 80MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 1.65 A.
In Stock: 7,508
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.65 A |
| Current - Saturation (Isat) | 2.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for B82462A4472M000 and get a quote within 24 hours.
