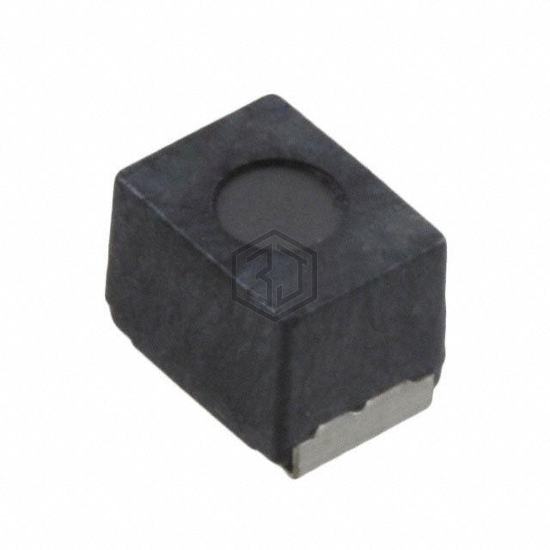

FIXED IND 47UH 350MA 1.35OHM SMD
B82432T1473K000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 47UH 350MA 1.35OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case 2-SMD, J-Lead, current rating (amps) 350 mA.
In Stock: 11,582
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 350 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.35Ohm Max |
| Q @ Freq | 10 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for B82432T1473K000 and get a quote within 24 hours.
