FIXED IND 3.3UH 900MA 190MOHM SM

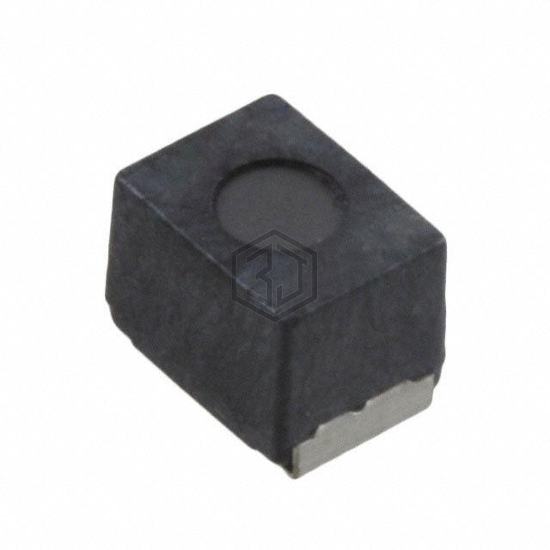

B82432T1332K000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 3.3UH 900MA 190MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case 2-SMD, J-Lead, current rating (amps) 900 mA.
In Stock: 29,974
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 190mOhm Max |
| Q @ Freq | 10 @ 7.96MHz |
| Frequency - Self Resonant | 50MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for B82432T1332K000 and get a quote within 24 hours.
