FIXED IND 330UH 700MA 1.53OHM TH

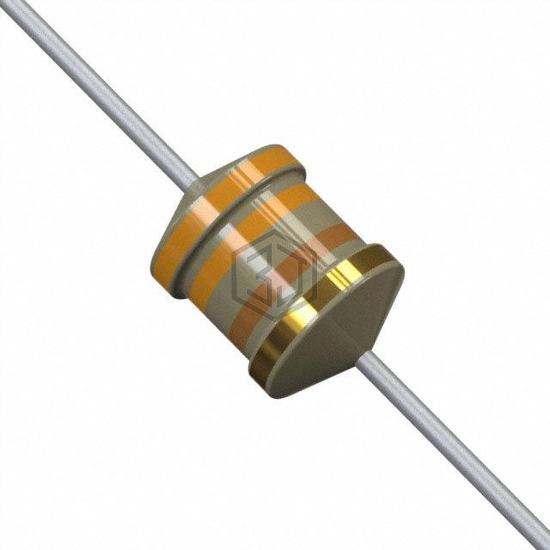

B82144F2334J000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 330UH 700MA 1.53OHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Axial, current rating (amps) 700 mA.
In Stock: 2,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | 520mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.53Ohm Max |
| Q @ Freq | 40 @ 79.6kHz |
| Frequency - Self Resonant | 2.8MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) |
| Height - Seated (Max) | - |
Submit your RFQ for B82144F2334J000 and get a quote within 24 hours.
