FIXED IND 1UH 4.45A 43 MOHM TH

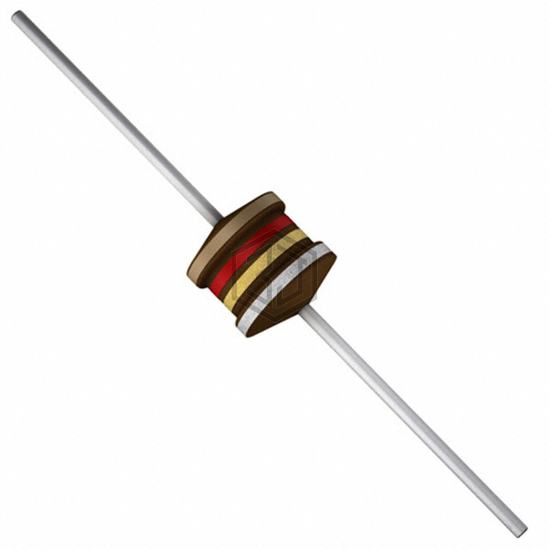

B82144F2102K000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 1UH 4.45A 43 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Axial, current rating (amps) 4.45 A.
In Stock: 2,108
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 4.45 A |
| Current - Saturation (Isat) | 7.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 43mOhm Max |
| Q @ Freq | 50 @ 2.52MHz |
| Frequency - Self Resonant | 200MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) |
| Height - Seated (Max) | - |
Submit your RFQ for B82144F2102K000 and get a quote within 24 hours.
