FIXED IND 180UH 950MA 785MOHM TH

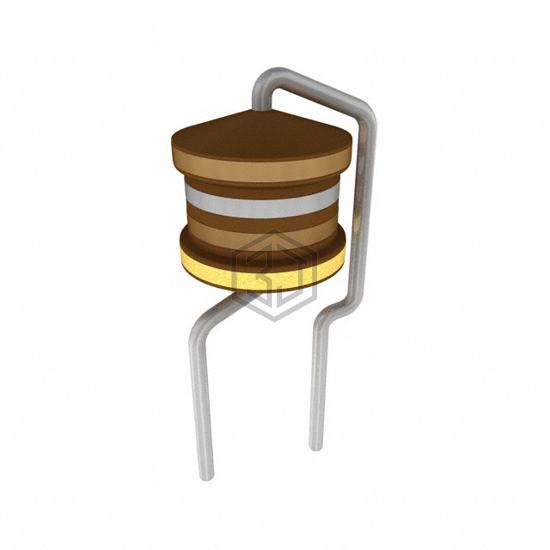

B82144B2184J000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 180UH 950MA 785MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 950 mA.
In Stock: 881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 180 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 950 mA |
| Current - Saturation (Isat) | 720mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 785mOhm Max |
| Q @ Freq | 40 @ 79.6kHz |
| Frequency - Self Resonant | 4MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia (6.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
Submit your RFQ for B82144B2184J000 and get a quote within 24 hours.
