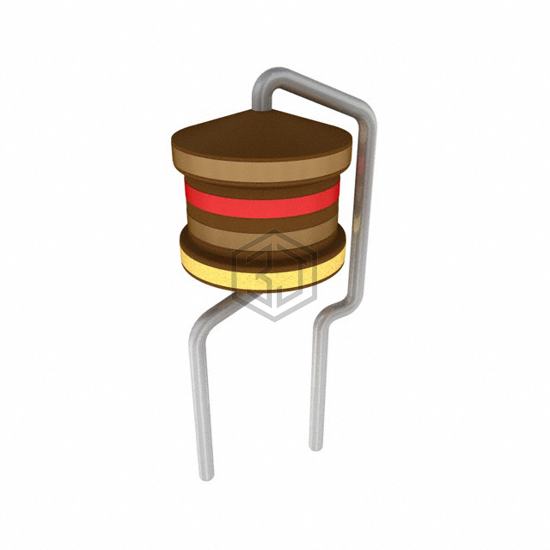

FIXED IND 120UH 1.1A 600 MOHM TH
B82144B2124J000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 120UH 1.1A 600 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 1.1 A.
In Stock: 181
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 850mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | 40 @ 79.6kHz |
| Frequency - Self Resonant | 4.6MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia (6.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
Submit your RFQ for B82144B2124J000 and get a quote within 24 hours.
