FIXED IND 47UH 950MA 680 MOHM TH

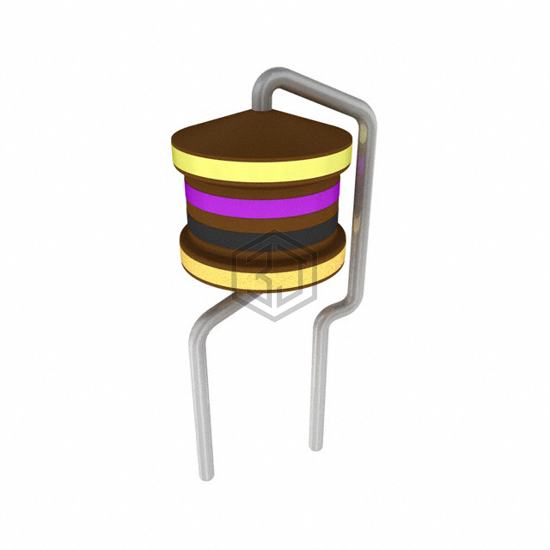

B78148E1473J000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 47UH 950MA 680 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, current rating (amps) 950 mA.
In Stock: 845
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 950 mA |
| Current - Saturation (Isat) | 870mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 680mOhm Max |
| Q @ Freq | 40 @ 796kHz |
| Frequency - Self Resonant | 8MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
Submit your RFQ for B78148E1473J000 and get a quote within 24 hours.
