FIXED IND 1.5UH 3.8A 47 MOHM TH

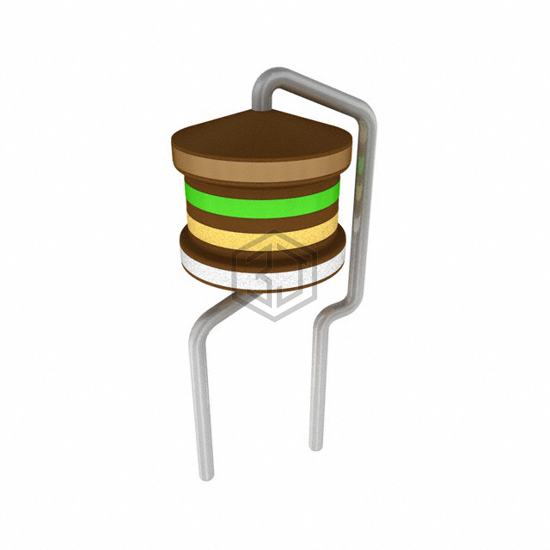

B78148E1152K000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 1.5UH 3.8A 47 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, current rating (amps) 3.8 A.
In Stock: 1,941
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | 4.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 47mOhm Max |
| Q @ Freq | 60 @ 7.96MHz |
| Frequency - Self Resonant | 235MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
Submit your RFQ for B78148E1152K000 and get a quote within 24 hours.
