FIXED IND 18UH 580MA 670 MOHM TH

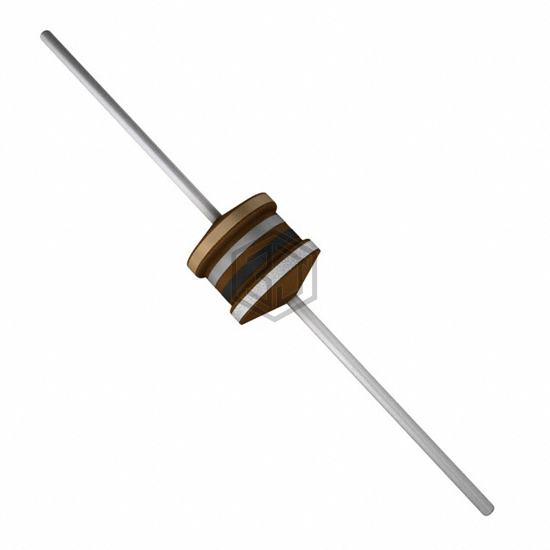

B78108S1183K000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 18UH 580MA 670 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Axial, current rating (amps) 580 mA.
In Stock: 19,835
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 18 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 580 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 670mOhm Max |
| Q @ Freq | 60 @ 2.52MHz |
| Frequency - Self Resonant | 17MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Height - Seated (Max) | - |
Submit your RFQ for B78108S1183K000 and get a quote within 24 hours.
