FIXED IND 1MH 130MA 14 OHM TH

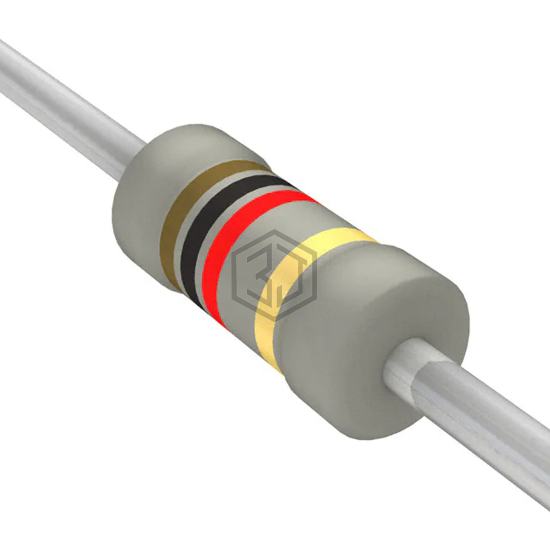

B78108S1105J009 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 1MH 130MA 14 OHM TH. Key specifications: mounting type Through Hole, package / case Axial, current rating (amps) 130 mA, size / dimension 0.157" Dia x 0.362" L (4.00mm x 9.20mm).
In Stock: 26,949
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 130 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 14Ohm Max |
| Q @ Freq | 50 @ 252kHz |
| Frequency - Self Resonant | 1.6MHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 252 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Height - Seated (Max) | - |
Submit your RFQ for B78108S1105J009 and get a quote within 24 hours.
