FIXED IND 4.7UH 2.75A 85 MOHM TH

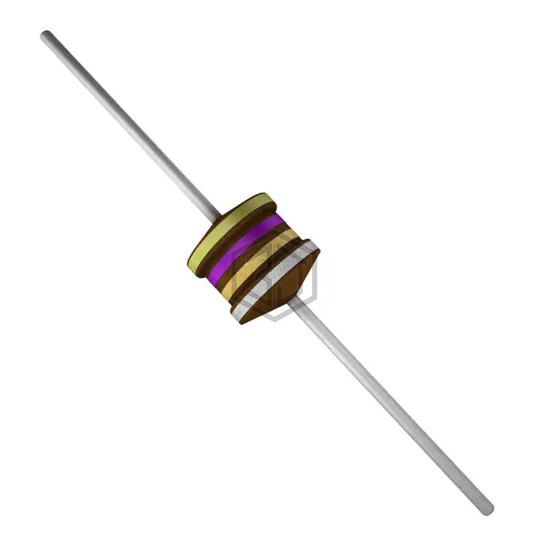

B78108E1472K000 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 4.7UH 2.75A 85 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Axial, current rating (amps) 2.75 A.
In Stock: 6,545
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.75 A |
| Current - Saturation (Isat) | 2.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 85mOhm Max |
| Q @ Freq | 45 @ 7.96MHz |
| Frequency - Self Resonant | 35MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) |
| Height - Seated (Max) | - |
