FIXED IND 3.3UH 3.05A 73 MOHM TH

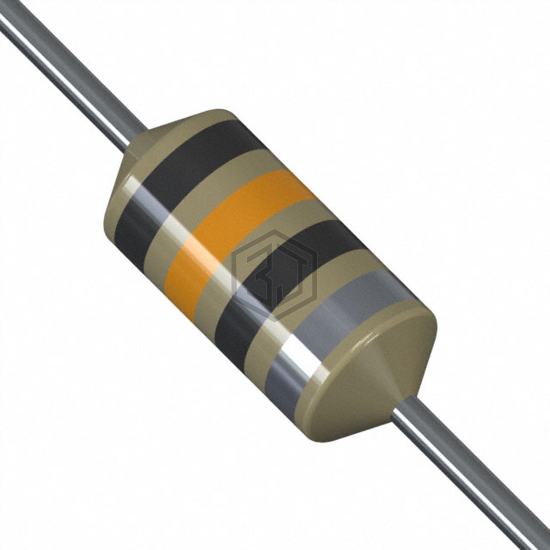

B78108E1332K009 is a Fixed Inductors manufactured by EPCOS - TDK Electronics. FIXED IND 3.3UH 3.05A 73 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Axial, current rating (amps) 3.05 A.
In Stock: 3,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 3.05 A |
| Current - Saturation (Isat) | 3.25A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 73mOhm Max |
| Q @ Freq | 45 @ 7.96MHz |
| Frequency - Self Resonant | 75MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) |
| Height - Seated (Max) | - |
