B66397Q0400K195
ETD59/31/22-N95-DG400

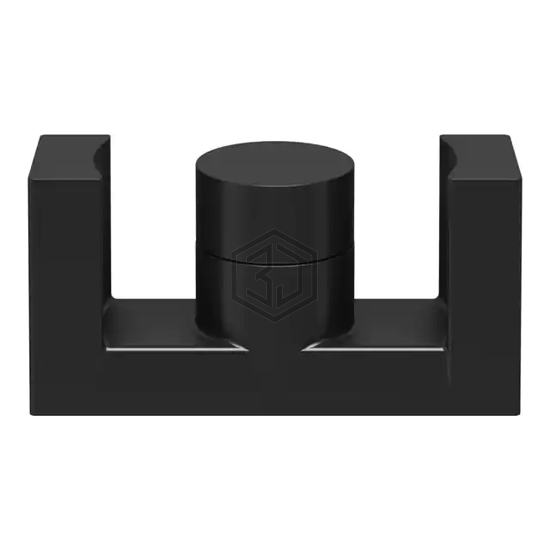

B66397Q0400K195 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. ETD59/31/22-N95-DG400. Key specifications: supplier device package ETD 59 x 31 x 22, material N95, tolerance ±10%.
In Stock: 33
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ETD |
| Supplier Device Package | ETD 59 x 31 x 22 |
| Material | N95 |
| Diameter | - |
| Inductance Factor (Al) | 400 nH |
| Tolerance | ±10% |
| Gap | Distributed Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.38 |
| Effective Length (le) mm | 139 |
| Effective Area (Ae) mm² | 368 |
| Minimum Core Cross Section (Amin) mm² | 368 |
| Effective Magnetic Volume (Ve) mm³ | 51200 |
| Finish | Uncoated |
| Height | 0.870" (22.10mm) |
| Length | 2.354" (59.80mm) |
| Width | 0.870" (22.10mm) |
Frequently Asked Questions
B66397Q0400K195 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. ETD59/31/22-N95-DG400
The package type of B66397Q0400K195 is ETD 59 x 31 x 22.
The material of B66397Q0400K195 is N95.
The tolerance of B66397Q0400K195 is ±10%.
