B66387Q0400K195
E65/32/27-N95-DG400

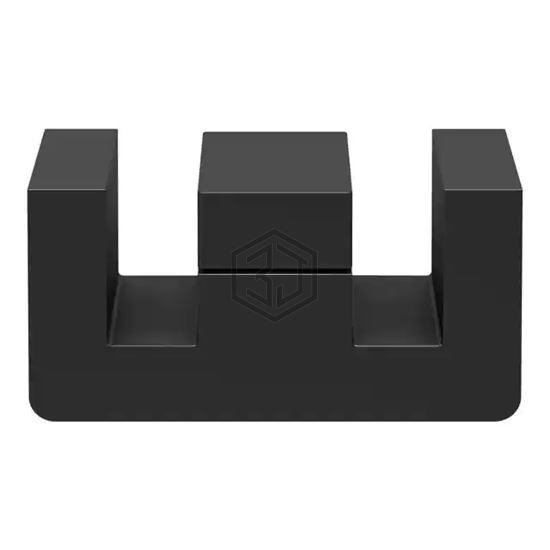

B66387Q0400K195 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. E65/32/27-N95-DG400. Key specifications: supplier device package E 65 x 32 x 27, material N95, tolerance ±10%.
In Stock: 30
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | E 65 x 32 x 27 |
| Material | N95 |
| Diameter | - |
| Inductance Factor (Al) | 400 nH |
| Tolerance | ±10% |
| Gap | Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2200 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.27 |
| Effective Length (le) mm | 147 |
| Effective Area (Ae) mm² | 535 |
| Minimum Core Cross Section (Amin) mm² | 529 |
| Effective Magnetic Volume (Ve) mm³ | 78600 |
| Finish | Uncoated |
| Height | 1.291" (32.80mm) |
| Length | 2.559" (65.00mm) |
| Width | 1.079" (27.40mm) |
Frequently Asked Questions
B66387Q0400K195 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. E65/32/27-N95-DG400
The package type of B66387Q0400K195 is E 65 x 32 x 27.
The material of B66387Q0400K195 is N95.
The tolerance of B66387Q0400K195 is ±10%.
