B66371Q0400K195
E70/33/32-N95-DG400

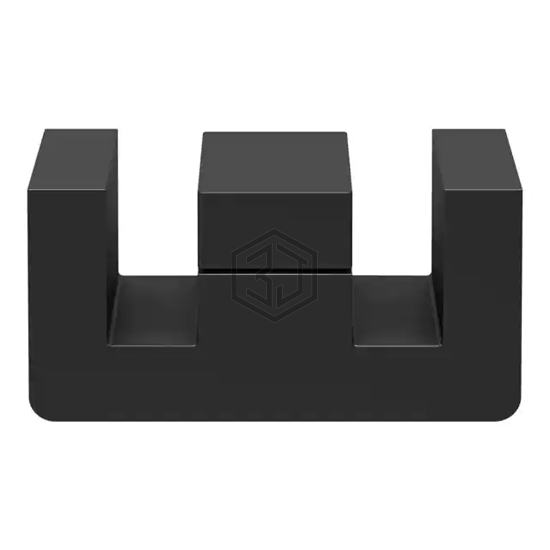

B66371Q0400K195 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. E70/33/32-N95-DG400. Key specifications: supplier device package E 70 x 33 x 32, material N95, tolerance ±10%.
In Stock: 36
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | E 70 x 33 x 32 |
| Material | N95 |
| Diameter | - |
| Inductance Factor (Al) | 400 nH |
| Tolerance | ±10% |
| Gap | Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2200 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.22 |
| Effective Length (le) mm | 149 |
| Effective Area (Ae) mm² | 683 |
| Minimum Core Cross Section (Amin) mm² | 676 |
| Effective Magnetic Volume (Ve) mm³ | 102000 |
| Finish | Uncoated |
| Height | 1.307" (33.20mm) |
| Length | 2.776" (70.50mm) |
| Width | 1.260" (32.00mm) |
Frequently Asked Questions
B66371Q0400K195 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. E70/33/32-N95-DG400
The package type of B66371Q0400K195 is E 70 x 33 x 32.
The material of B66371Q0400K195 is N95.
The tolerance of B66371Q0400K195 is ±10%.
