B66367Q0250K187
ETD49/25/16-N87-DG250

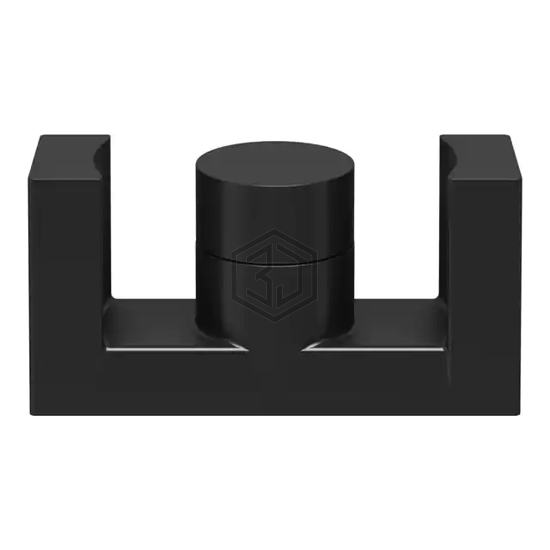

B66367Q0250K187 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. ETD49/25/16-N87-DG250. Key specifications: supplier device package ETD 49 x 25 x 16, material N87, tolerance ±10%.
In Stock: 59
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ETD |
| Supplier Device Package | ETD 49 x 25 x 16 |
| Material | N87 |
| Diameter | - |
| Inductance Factor (Al) | 250 nH |
| Tolerance | ±10% |
| Gap | Distributed Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.54 |
| Effective Length (le) mm | 114 |
| Effective Area (Ae) mm² | 211 |
| Minimum Core Cross Section (Amin) mm² | 209 |
| Effective Magnetic Volume (Ve) mm³ | 24100 |
| Finish | Uncoated |
| Height | 0.657" (16.70mm) |
| Length | 1.909" (48.50mm) |
| Width | 0.980" (24.90mm) |
Frequently Asked Questions
B66367Q0250K187 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. ETD49/25/16-N87-DG250
The package type of B66367Q0250K187 is ETD 49 x 25 x 16.
The material of B66367Q0250K187 is N87.
The tolerance of B66367Q0250K187 is ±10%.
