B66363Q0150K187
ETD39/20/13-N87-DG150

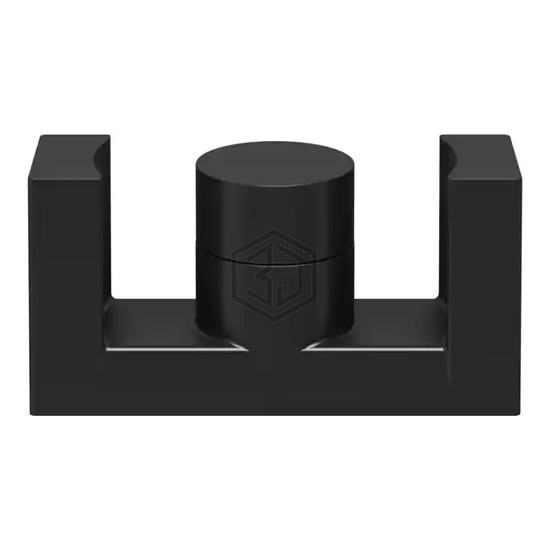

B66363Q0150K187 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. ETD39/20/13-N87-DG150. Key specifications: supplier device package ETD 39 x 20 x 13, material N87, tolerance ±10%.
In Stock: 157
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ETD |
| Supplier Device Package | ETD 39 x 20 x 13 |
| Material | N87 |
| Diameter | - |
| Inductance Factor (Al) | 150 nH |
| Tolerance | ±10% |
| Gap | Distributed Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.74 |
| Effective Length (le) mm | 92.2 |
| Effective Area (Ae) mm² | 125 |
| Minimum Core Cross Section (Amin) mm² | 123 |
| Effective Magnetic Volume (Ve) mm³ | 11500 |
| Finish | Uncoated |
| Height | 0.504" (12.80mm) |
| Length | 1.531" (38.90mm) |
| Width | 0.787" (20.00mm) |
Frequently Asked Questions
B66363Q0150K187 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. ETD39/20/13-N87-DG150
The package type of B66363Q0150K187 is ETD 39 x 20 x 13.
The material of B66363Q0150K187 is N87.
The tolerance of B66363Q0150K187 is ±10%.
