B66347G0000X197
FERRITE CORE

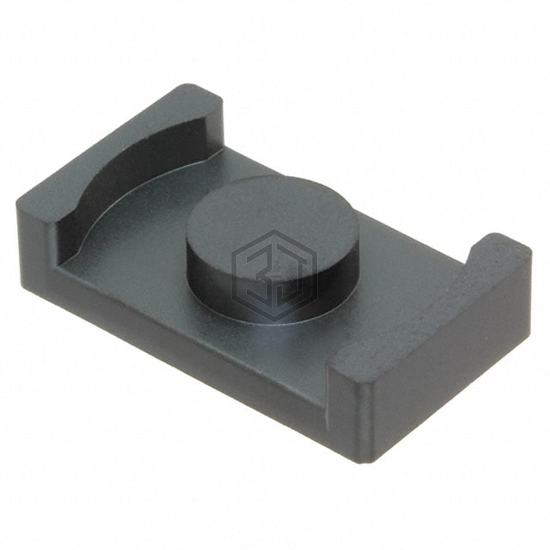

B66347G0000X197 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE. Key specifications: supplier device package ER 42 x 22 x 15, material N97.
In Stock: 107
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 42 x 22 x 15 |
| Material | N97 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | - |
| Gap | - |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2300 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.58 |
| Effective Length (le) mm | 99 |
| Effective Area (Ae) mm² | 170 |
| Minimum Core Cross Section (Amin) mm² | 170 |
| Effective Magnetic Volume (Ve) mm³ | 16800 |
| Finish | Uncoated |
| Height | 0.858" (21.80mm) |
| Length | 1.654" (42.00mm) |
| Width | 0.591" (15.00mm) |
Frequently Asked Questions
B66347G0000X197 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE
The package type of B66347G0000X197 is ER 42 x 22 x 15.
The material of B66347G0000X197 is N97.
