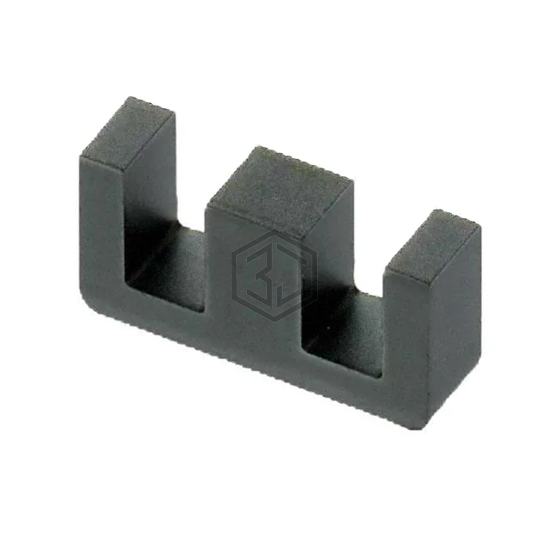

B66305G0130X187
FERRITE CORE
B66305G0130X187 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE. Key specifications: supplier device package E 13 x 7 x 4, material N87.
In Stock: 2,098
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | E |
| Supplier Device Package | E 13 x 7 x 4 |
| Material | N87 |
| Diameter | - |
| Inductance Factor (Al) | 112 nH |
| Tolerance | - |
| Gap | Gapped |
| Effective Permeability (µe) | 215 |
| Initial Permeability (µi) | 2200 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 2.39 |
| Effective Length (le) mm | 29.6 |
| Effective Area (Ae) mm² | 12.4 |
| Minimum Core Cross Section (Amin) mm² | 12.2 |
| Effective Magnetic Volume (Ve) mm³ | 367 |
| Finish | Uncoated |
| Height | 0.256" (6.50mm) |
| Length | 0.496" (12.60mm) |
| Width | 0.146" (3.70mm) |
Frequently Asked Questions
B66305G0130X187 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE
The package type of B66305G0130X187 is E 13 x 7 x 4.
The material of B66305G0130X187 is N87.
