B65982Q0400K097
PQ65/60-N97-DG400

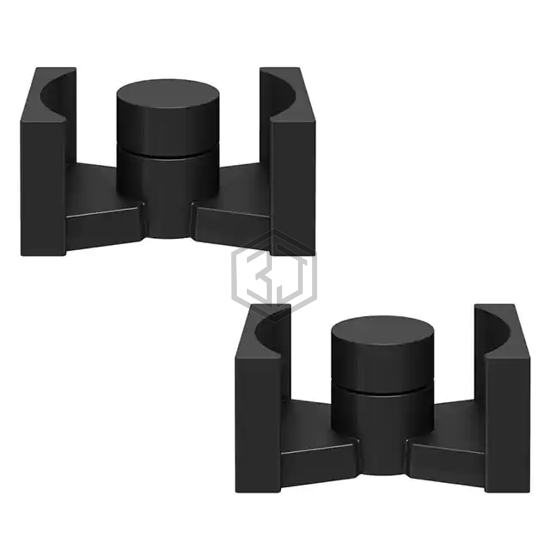

B65982Q0400K097 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. PQ65/60-N97-DG400. Key specifications: supplier device package PQ 65 x 60, material N97, tolerance ±10%.
In Stock: 14
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | PQ 65 x 60 |
| Material | N97 |
| Diameter | - |
| Inductance Factor (Al) | 400 nH |
| Tolerance | ±10% |
| Gap | Distributed Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.228 |
| Effective Length (le) mm | 137 |
| Effective Area (Ae) mm² | 171 |
| Minimum Core Cross Section (Amin) mm² | 531 |
| Effective Magnetic Volume (Ve) mm³ | 81950 |
| Finish | Uncoated |
| Height | 1.181" (30.00mm) |
| Length | 2.559" (65.00mm) |
| Width | 1.772" (45.00mm) |
Frequently Asked Questions
B65982Q0400K097 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. PQ65/60-N97-DG400
The package type of B65982Q0400K097 is PQ 65 x 60.
The material of B65982Q0400K097 is N97.
The tolerance of B65982Q0400K097 is ±10%.
