B65981Q0400K097
PQ50/50-N97-DG400

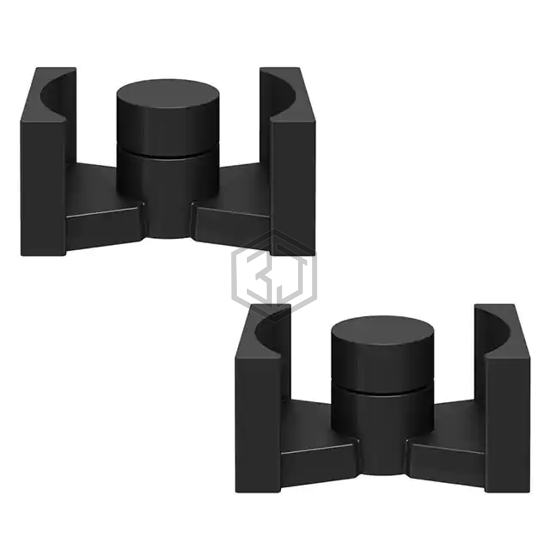

B65981Q0400K097 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. PQ50/50-N97-DG400. Key specifications: supplier device package PQ 50 x 50, material N97, tolerance ±10%.
In Stock: 36
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | PQ 50 x 50 |
| Material | N97 |
| Diameter | - |
| Inductance Factor (Al) | 400 nH |
| Tolerance | ±10% |
| Gap | Distributed Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.342 |
| Effective Length (le) mm | 113 |
| Effective Area (Ae) mm² | 332 |
| Minimum Core Cross Section (Amin) mm² | 314 |
| Effective Magnetic Volume (Ve) mm³ | 37630 |
| Finish | Uncoated |
| Height | 0.984" (25.00mm) |
| Length | 1.969" (50.00mm) |
| Width | 1.260" (32.00mm) |
Frequently Asked Questions
B65981Q0400K097 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. PQ50/50-N97-DG400
The package type of B65981Q0400K097 is PQ 50 x 50.
The material of B65981Q0400K097 is N97.
The tolerance of B65981Q0400K097 is ±10%.
