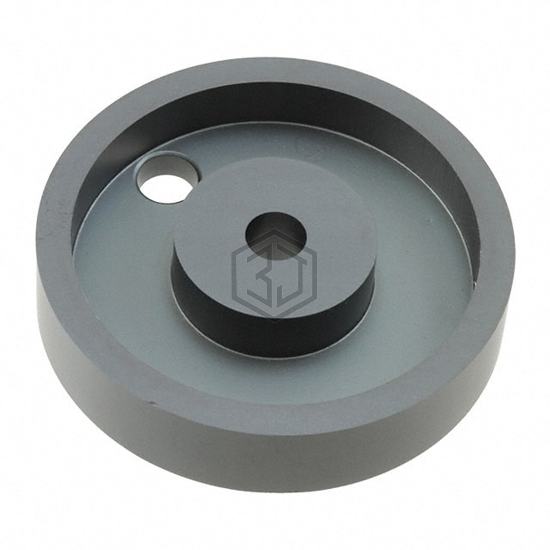

FERRITE CORE P N22
B65945A0000X022 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE P N22. Key specifications: supplier device package P Core Half 70 x 14.5, material N22.
In Stock: 103
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | P (Pot Core) |
| Supplier Device Package | P Core Half 70 x 14.5 |
| Material | N22 |
| Diameter | 2.756" (70.00mm) |
| Inductance Factor (Al) | - |
| Tolerance | - |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | - |
| Effective Length (le) mm | - |
| Effective Area (Ae) mm² | - |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | - |
| Finish | Uncoated |
| Height | 0.571" (14.50mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B65945A0000X022 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE P N22
The package type of B65945A0000X022 is P Core Half 70 x 14.5.
The material of B65945A0000X022 is N22.
