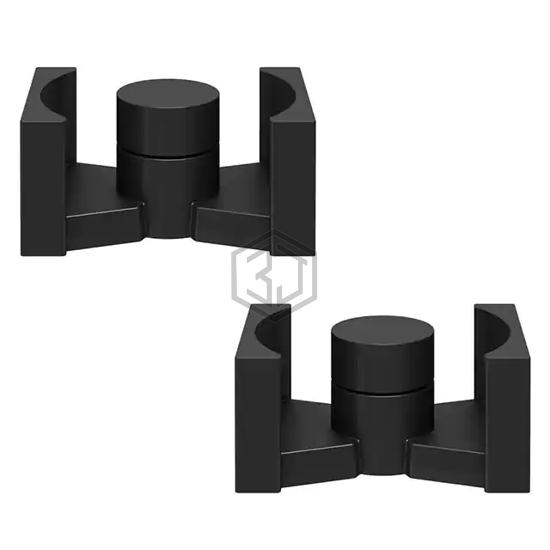

B65881Q0150K095
PQ35/35-N95-DG150
B65881Q0150K095 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. PQ35/35-N95-DG150. Key specifications: supplier device package PQ 35 x 35, material N95, tolerance ±10%.
In Stock: 31
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | PQ 35 x 35 |
| Material | N95 |
| Diameter | - |
| Inductance Factor (Al) | 150 nH |
| Tolerance | ±10% |
| Gap | Distributed Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 3000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.47 |
| Effective Length (le) mm | 79.7 |
| Effective Area (Ae) mm² | 171 |
| Minimum Core Cross Section (Amin) mm² | 161 |
| Effective Magnetic Volume (Ve) mm³ | 13650 |
| Finish | Uncoated |
| Height | 0.685" (17.40mm) |
| Length | 1.382" (35.10mm) |
| Width | 1.024" (26.00mm) |
Frequently Asked Questions
B65881Q0150K095 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. PQ35/35-N95-DG150
The package type of B65881Q0150K095 is PQ 35 x 35.
The material of B65881Q0150K095 is N95.
The tolerance of B65881Q0150K095 is ±10%.
