B65815E0400J041

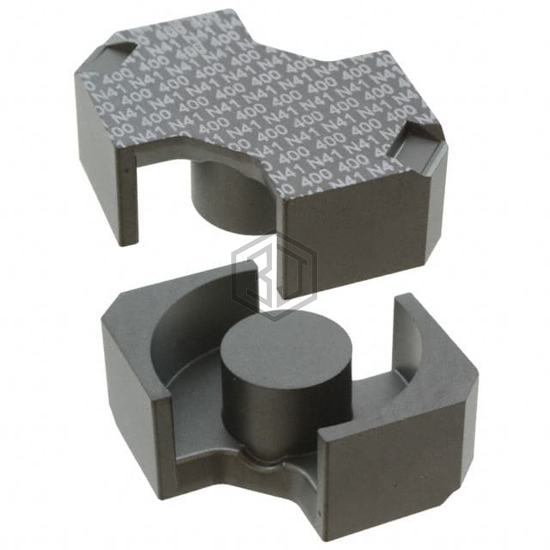

FERRITE CORE RM 400NH N41 2PCS
B65815E0400J041 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 400NH N41 2PCS. Key specifications: supplier device package RM 12, material N41, tolerance ±5%.
In Stock: 202
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | RM 12 |
| Material | N41 |
| Diameter | - |
| Inductance Factor (Al) | 400 nH |
| Tolerance | ±5% |
| Gap | Gapped |
| Effective Permeability (µe) | 124 |
| Initial Permeability (µi) | 2800 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.39 |
| Effective Length (le) mm | 57 |
| Effective Area (Ae) mm² | 146 |
| Minimum Core Cross Section (Amin) mm² | 125 |
| Effective Magnetic Volume (Ve) mm³ | 8320 |
| Finish | Uncoated |
| Height | 0.484" (12.30mm) |
| Length | 1.480" (37.60mm) |
| Width | 0.634" (16.10mm) |
Frequently Asked Questions
B65815E0400J041 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 400NH N41 2PCS
The package type of B65815E0400J041 is RM 12.
The material of B65815E0400J041 is N41.
The tolerance of B65815E0400J041 is ±5%.
