3J LIMITED
B65813J0160A087

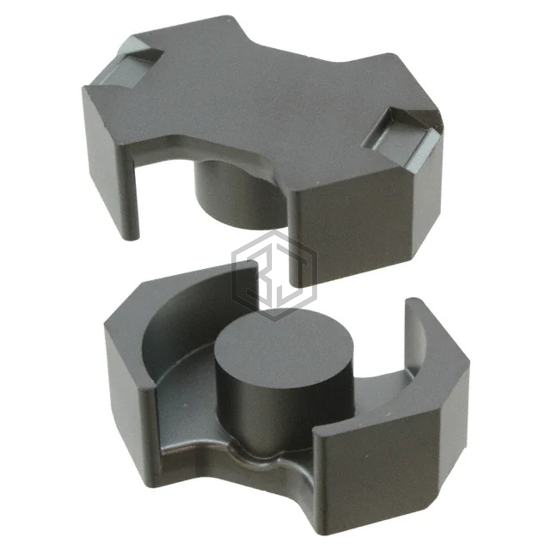

FERRITE CORE RM N87 2PCS
B65813J0160A087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM N87 2PCS. Key specifications: supplier device package RM 10, material N87.
In Stock: 146
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | RM 10 |
| Material | N87 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | - |
| Gap | Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.45 |
| Effective Length (le) mm | 44 |
| Effective Area (Ae) mm² | 98 |
| Minimum Core Cross Section (Amin) mm² | 90 |
| Effective Magnetic Volume (Ve) mm³ | 4310 |
| Finish | Uncoated |
| Height | 0.368" (9.35mm) |
| Length | 1.122" (28.50mm) |
| Width | 0.531" (13.50mm) |
Frequently Asked Questions
B65813J0160A087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM N87 2PCS
The package type of B65813J0160A087 is RM 10.
The material of B65813J0160A087 is N87.
