B65811J0400A087

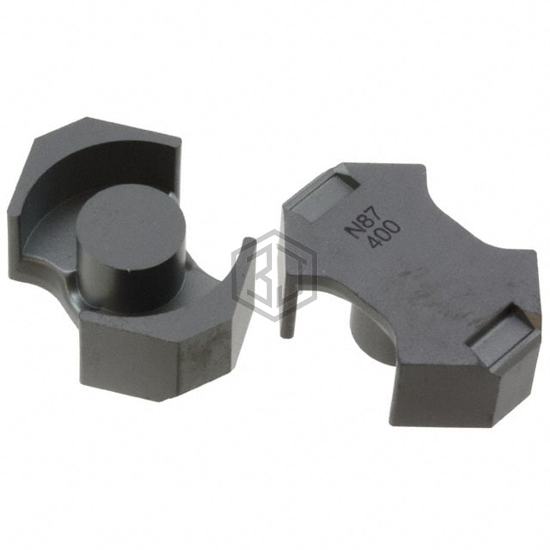

FERRITE CORE RM 400NH N87 2PCS
B65811J0400A087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 400NH N87 2PCS. Key specifications: supplier device package RM 8, material N87, tolerance ±3%.
In Stock: 751
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | RM 8 |
| Material | N87 |
| Diameter | - |
| Inductance Factor (Al) | 400 nH |
| Tolerance | ±3% |
| Gap | Gapped |
| Effective Permeability (µe) | 189 |
| Initial Permeability (µi) | 2200 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.59 |
| Effective Length (le) mm | 38 |
| Effective Area (Ae) mm² | 64 |
| Minimum Core Cross Section (Amin) mm² | 55 |
| Effective Magnetic Volume (Ve) mm³ | 2430 |
| Finish | Uncoated |
| Height | 0.324" (8.25mm) |
| Length | 0.913" (23.20mm) |
| Width | 0.433" (11.00mm) |
Frequently Asked Questions
B65811J0400A087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 400NH N87 2PCS
The package type of B65811J0400A087 is RM 8.
The material of B65811J0400A087 is N87.
The tolerance of B65811J0400A087 is ±3%.
