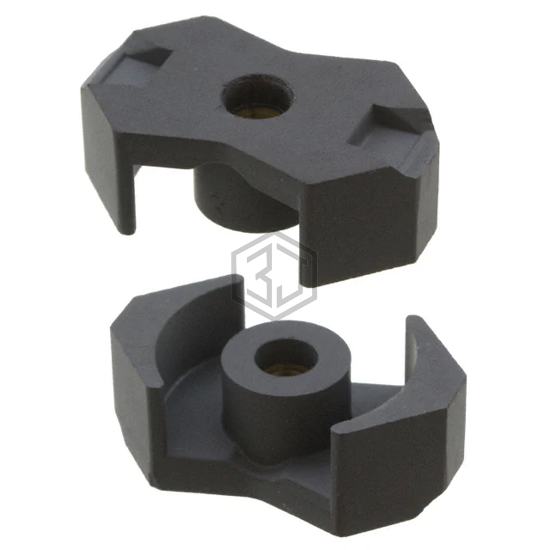

B65807N0040A001
FERRITE CORE RM 40NH K1 2PCS
B65807N0040A001 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 40NH K1 2PCS. Key specifications: supplier device package RM 6, material K1, tolerance ±3%.
In Stock: 935
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | RM 6 |
| Material | K1 |
| Diameter | - |
| Inductance Factor (Al) | 40 nH |
| Tolerance | ±3% |
| Gap | Gapped |
| Effective Permeability (µe) | 27.4 |
| Initial Permeability (µi) | 80 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.86 |
| Effective Length (le) mm | 26.9 |
| Effective Area (Ae) mm² | 31.3 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 840 |
| Finish | Uncoated |
| Height | 0.246" (6.25mm) |
| Length | 0.701" (17.90mm) |
| Width | 0.323" (8.20mm) |
Frequently Asked Questions
B65807N0040A001 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 40NH K1 2PCS
The package type of B65807N0040A001 is RM 6.
The material of B65807N0040A001 is K1.
The tolerance of B65807N0040A001 is ±3%.
