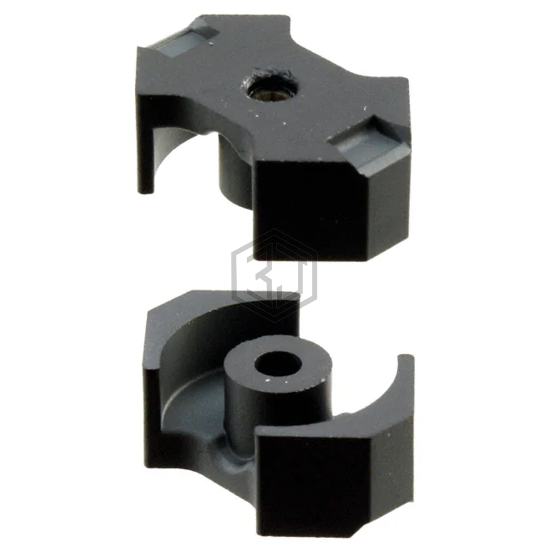

B65805C0315A048
FERRITE CORE RM 315NH N48 2PCS
B65805C0315A048 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 315NH N48 2PCS. Key specifications: supplier device package RM 5, material N48, tolerance ±3%.
In Stock: 516
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | RM 5 |
| Material | N48 |
| Diameter | - |
| Inductance Factor (Al) | 315 nH |
| Tolerance | ±3% |
| Gap | Gapped |
| Effective Permeability (µe) | 251 |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1 |
| Effective Length (le) mm | 20.8 |
| Effective Area (Ae) mm² | 20.8 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 433 |
| Finish | Uncoated |
| Height | 0.207" (5.25mm) |
| Length | 0.575" (14.60mm) |
| Width | 0.268" (6.80mm) |
Frequently Asked Questions
B65805C0315A048 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 315NH N48 2PCS
The package type of B65805C0315A048 is RM 5.
The material of B65805C0315A048 is N48.
The tolerance of B65805C0315A048 is ±3%.
