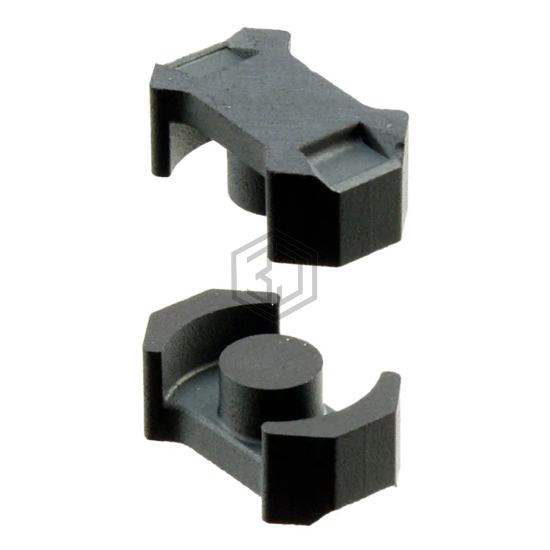

FERRITE CORE RM 950NH N49 2PCS
B65803P0000R049 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 950NH N49 2PCS. Key specifications: supplier device package RM 4 LP, material N49, tolerance -20%, +30%.
In Stock: 1,063
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | RM 4 LP |
| Material | N49 |
| Diameter | - |
| Inductance Factor (Al) | 950 nH |
| Tolerance | -20%, +30% |
| Gap | Ungapped |
| Effective Permeability (µe) | 900 |
| Initial Permeability (µi) | 1500 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.2 |
| Effective Length (le) mm | 17.3 |
| Effective Area (Ae) mm² | 14.5 |
| Minimum Core Cross Section (Amin) mm² | 11.3 |
| Effective Magnetic Volume (Ve) mm³ | 251 |
| Finish | Uncoated |
| Height | 0.154" (3.90mm) |
| Length | 0.433" (11.00mm) |
| Width | 0.181" (4.60mm) |
