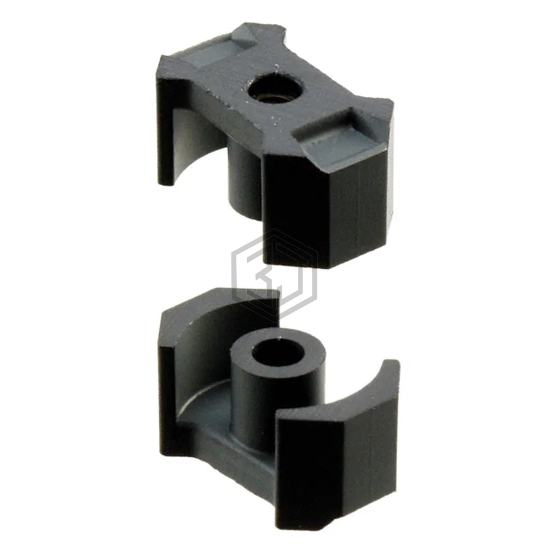

B65803N0063A033
FERRITE CORE RM 63NH M33 2PCS
B65803N0063A033 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 63NH M33 2PCS. Key specifications: supplier device package RM 4, material M33, tolerance ±3%.
In Stock: 2,545
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | RM 4 |
| Material | M33 |
| Diameter | - |
| Inductance Factor (Al) | 63 nH |
| Tolerance | ±3% |
| Gap | Gapped |
| Effective Permeability (µe) | 96 |
| Initial Permeability (µi) | 750 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.9 |
| Effective Length (le) mm | 21 |
| Effective Area (Ae) mm² | 11 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 231 |
| Finish | Uncoated |
| Height | 0.207" (5.25mm) |
| Length | 0.433" (11.00mm) |
| Width | 0.181" (4.60mm) |
Frequently Asked Questions
B65803N0063A033 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE RM 63NH M33 2PCS
The package type of B65803N0063A033 is RM 4.
The material of B65803N0063A033 is M33.
The tolerance of B65803N0063A033 is ±3%.
