B65803J0000R608
RM4-PC200

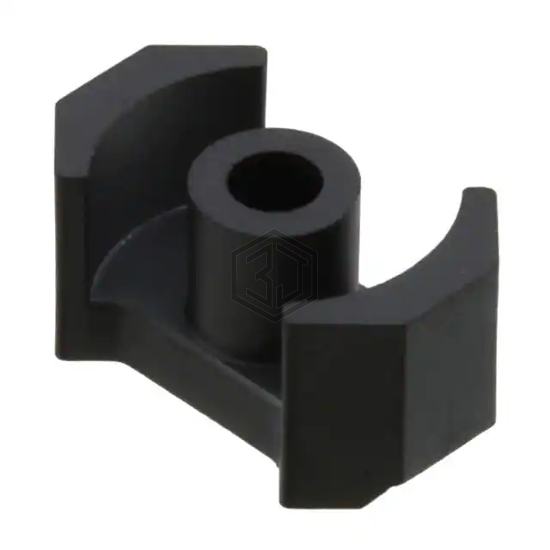

B65803J0000R608 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. RM4-PC200. Key specifications: supplier device package RM 4, material PC200, tolerance -20%, +30%.
In Stock: 906
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | RM |
| Supplier Device Package | RM 4 |
| Material | PC200 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | -20%, +30% |
| Gap | Ungapped |
| Effective Permeability (µe) | 670 |
| Initial Permeability (µi) | 800 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.7 |
| Effective Length (le) mm | 22 |
| Effective Area (Ae) mm² | 13 |
| Minimum Core Cross Section (Amin) mm² | 11.3 |
| Effective Magnetic Volume (Ve) mm³ | 286 |
| Finish | Uncoated |
| Height | 0.413" (10.50mm) |
| Length | 0.433" (11.00mm) |
| Width | 0.181" (4.60mm) |
Frequently Asked Questions
B65803J0000R608 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. RM4-PC200
The package type of B65803J0000R608 is RM 4.
The material of B65803J0000R608 is PC200.
The tolerance of B65803J0000R608 is -20%, +30%.
