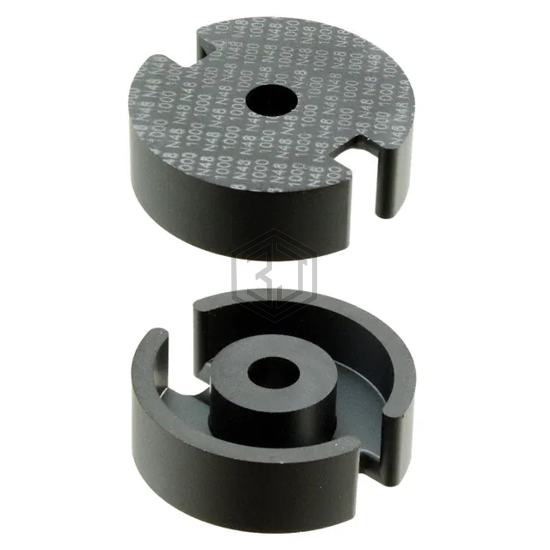

B65701T1000A048
FERRITE CORE P 1UH N48 2PCS
B65701T1000A048 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE P 1UH N48 2PCS. Key specifications: supplier device package P 30 x 19, material N48, tolerance ±3%.
In Stock: 164
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | P (Pot Core) |
| Supplier Device Package | P 30 x 19 |
| Material | N48 |
| Diameter | 1.200" (30.50mm) |
| Inductance Factor (Al) | 1 µH |
| Tolerance | ±3% |
| Gap | Gapped |
| Effective Permeability (µe) | 263 |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.33 |
| Effective Length (le) mm | 45 |
| Effective Area (Ae) mm² | 136 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 6120 |
| Finish | Uncoated |
| Height | 0.374" (9.50mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B65701T1000A048 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE P 1UH N48 2PCS
The package type of B65701T1000A048 is P 30 x 19.
The material of B65701T1000A048 is N48.
The tolerance of B65701T1000A048 is ±3%.
