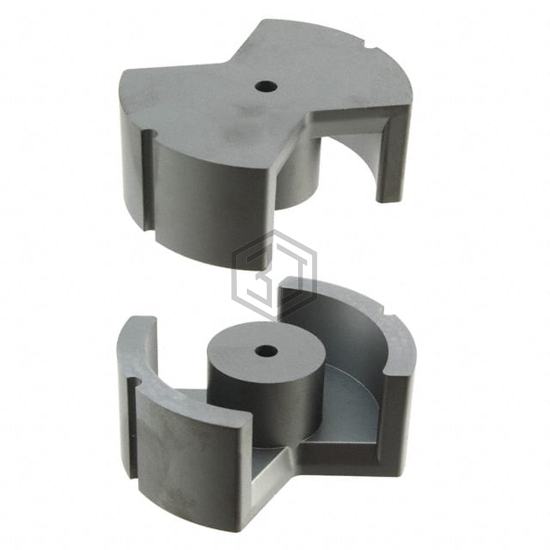

FERRITE CORE PM 315NH N27 2PCS
B65686A0315A027 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE PM 315NH N27 2PCS. Key specifications: supplier device package PM 74 x 59, material N27, tolerance ±3%.
In Stock: 140
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PM |
| Supplier Device Package | PM 74 x 59 |
| Material | N27 |
| Diameter | 2.913" (74.00mm) |
| Inductance Factor (Al) | 315 nH |
| Tolerance | ±3% |
| Gap | Gapped |
| Effective Permeability (µe) | 41 |
| Initial Permeability (µi) | 2000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.162 |
| Effective Length (le) mm | 128 |
| Effective Area (Ae) mm² | 790 |
| Minimum Core Cross Section (Amin) mm² | 630 |
| Effective Magnetic Volume (Ve) mm³ | 101000 |
| Finish | Uncoated |
| Height | 1.161" (29.50mm) |
| Length | - |
| Width | - |
Submit your RFQ for B65686A0315A027 and get a quote within 24 hours.
