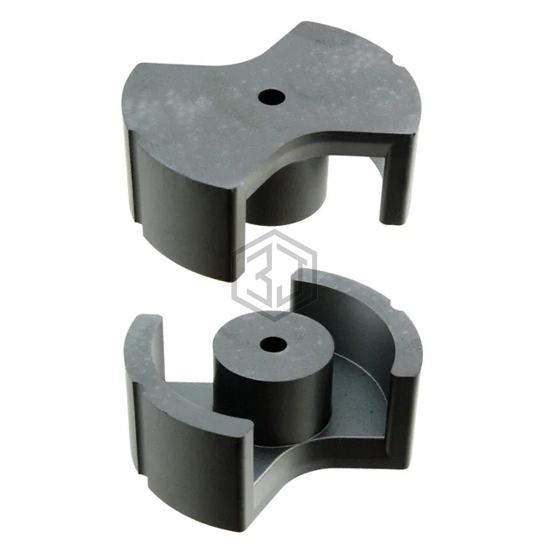

FERRITE CORE PM 9.2UH N27 2PCS
B65684A0000R027 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE PM 9.2UH N27 2PCS. Key specifications: supplier device package PM 62 x 49, material N27, tolerance -20%, +30%.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PM |
| Supplier Device Package | PM 62 x 49 |
| Material | N27 |
| Diameter | 2.441" (62.00mm) |
| Inductance Factor (Al) | 9.2 µH |
| Tolerance | -20%, +30% |
| Gap | Ungapped |
| Effective Permeability (µe) | 1400 |
| Initial Permeability (µi) | 2000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.191 |
| Effective Length (le) mm | 109 |
| Effective Area (Ae) mm² | 570 |
| Minimum Core Cross Section (Amin) mm² | 470 |
| Effective Magnetic Volume (Ve) mm³ | 62000 |
| Finish | Uncoated |
| Height | 0.965" (24.50mm) |
| Length | - |
| Width | - |
Submit your RFQ for B65684A0000R027 and get a quote within 24 hours.
