B65671T0100A001

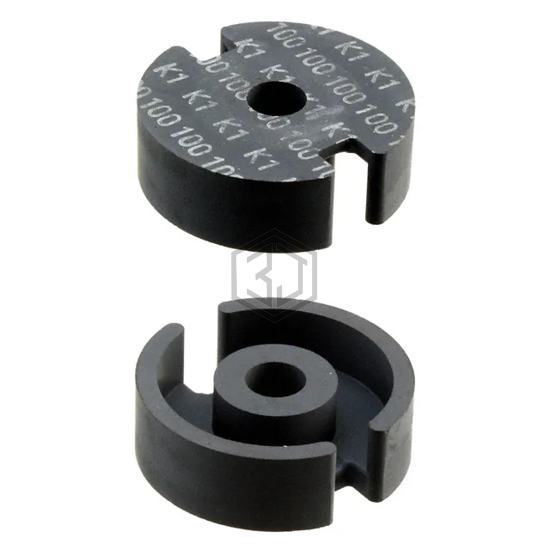

FERRITE CORE P 100NH K1 2PCS
B65671T0100A001 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE P 100NH K1 2PCS. Key specifications: supplier device package P 26 x 16, material K1, tolerance ±3%.
In Stock: 418
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | P (Pot Core) |
| Supplier Device Package | P 26 x 16 |
| Material | K1 |
| Diameter | 1.024" (26.00mm) |
| Inductance Factor (Al) | 100 nH |
| Tolerance | ±3% |
| Gap | Gapped |
| Effective Permeability (µe) | 32 |
| Initial Permeability (µi) | 80 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.4 |
| Effective Length (le) mm | 37.2 |
| Effective Area (Ae) mm² | 93 |
| Minimum Core Cross Section (Amin) mm² | 76.5 |
| Effective Magnetic Volume (Ve) mm³ | 3460 |
| Finish | Uncoated |
| Height | 0.321" (8.15mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B65671T0100A001 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE P 100NH K1 2PCS
The package type of B65671T0100A001 is P 26 x 16.
The material of B65671T0100A001 is K1.
The tolerance of B65671T0100A001 is ±3%.
