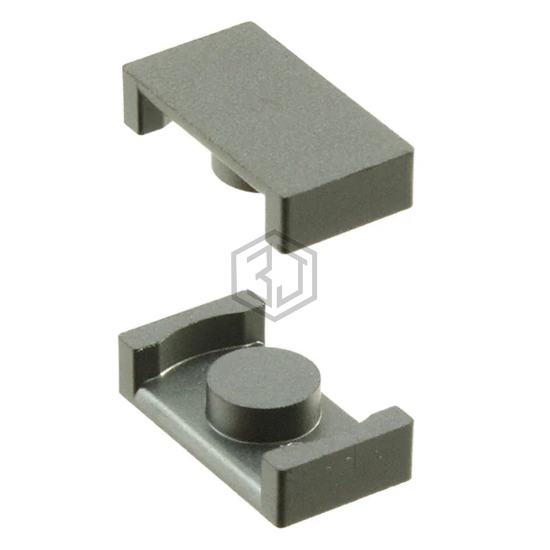

FERRITE CORE ER 800NH N49 2PCS
B65525J0000R049 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE ER 800NH N49 2PCS. Key specifications: supplier device package ER 11 x 5, material N49, tolerance -20%, +30%.
In Stock: 101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 11 x 5 |
| Material | N49 |
| Diameter | - |
| Inductance Factor (Al) | 800 nH |
| Tolerance | -20%, +30% |
| Gap | Ungapped |
| Effective Permeability (µe) | 715 |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.1 |
| Effective Length (le) mm | 14.1 |
| Effective Area (Ae) mm² | 12.4 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 174 |
| Finish | Uncoated |
| Height | 0.098" (2.50mm) |
| Length | 0.433" (11.00mm) |
| Width | 0.236" (6.00mm) |
Submit your RFQ for B65525J0000R049 and get a quote within 24 hours.
