B65513J0000R608
ER14.5/6-PC200

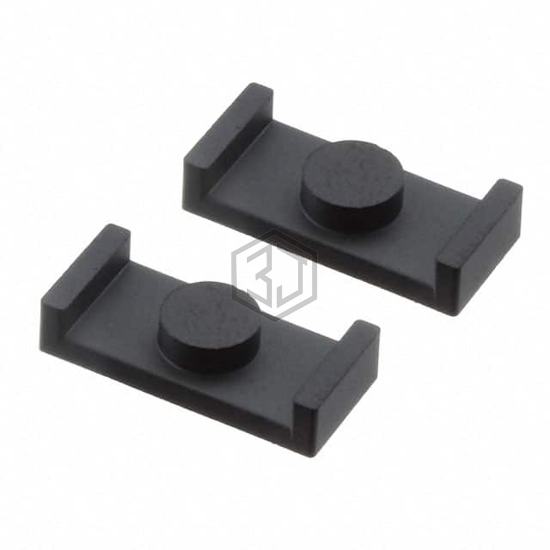

B65513J0000R608 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. ER14.5/6-PC200. Key specifications: supplier device package ER 14.5 x 6, material PC200, tolerance -20%, +30%.
In Stock: 580
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 14.5 x 6 |
| Material | PC200 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | -20%, +30% |
| Gap | Ungapped |
| Effective Permeability (µe) | 640 |
| Initial Permeability (µi) | 800 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.08 |
| Effective Length (le) mm | 19 |
| Effective Area (Ae) mm² | 17.6 |
| Minimum Core Cross Section (Amin) mm² | 17.3 |
| Effective Magnetic Volume (Ve) mm³ | 334 |
| Finish | Uncoated |
| Height | 0.116" (2.95mm) |
| Length | 0.571" (14.50mm) |
| Width | 0.264" (6.70mm) |
Frequently Asked Questions
B65513J0000R608 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. ER14.5/6-PC200
The package type of B65513J0000R608 is ER 14.5 x 6.
The material of B65513J0000R608 is PC200.
The tolerance of B65513J0000R608 is -20%, +30%.
