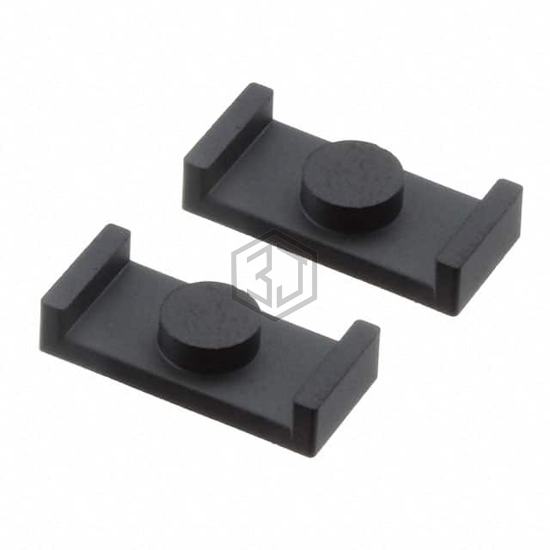

FERRITE CORE ER 1.1UH N92 2PCS
B65513J0000R092 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE ER 1.1UH N92 2PCS. Key specifications: supplier device package ER 14.5 x 6, material N92, tolerance -20%, +30%.
In Stock: 6,428
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 14.5 x 6 |
| Material | N92 |
| Diameter | - |
| Inductance Factor (Al) | 1.1 µH |
| Tolerance | -20%, +30% |
| Gap | Ungapped |
| Effective Permeability (µe) | 970 |
| Initial Permeability (µi) | 1500 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.1 |
| Effective Length (le) mm | 19 |
| Effective Area (Ae) mm² | 17.6 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 333 |
| Finish | Uncoated |
| Height | 0.116" (2.95mm) |
| Length | 0.571" (14.50mm) |
| Width | 0.264" (6.70mm) |
Submit your RFQ for B65513J0000R092 and get a quote within 24 hours.
