B64290P0037X087
FERRITE CORE TOROID 560NH N87

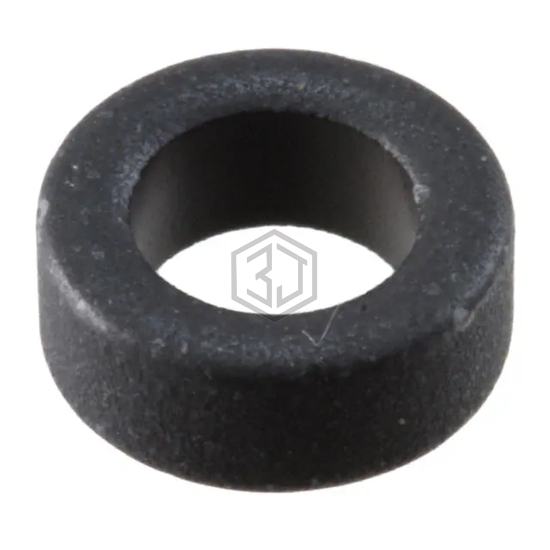

B64290P0037X087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 560NH N87. Key specifications: material N87, tolerance ±25%.
In Stock: 19,902
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | N87 |
| Diameter | 0.249" (6.32mm) |
| Inductance Factor (Al) | 560 nH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2200 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 4.97 |
| Effective Length (le) mm | 15.21 |
| Effective Area (Ae) mm² | 3.06 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 46.5 |
| Finish | Parylene |
| Height | 0.099" (2.52mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B64290P0037X087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 560NH N87
The material of B64290P0037X087 is N87.
The tolerance of B64290P0037X087 is ±25%.
