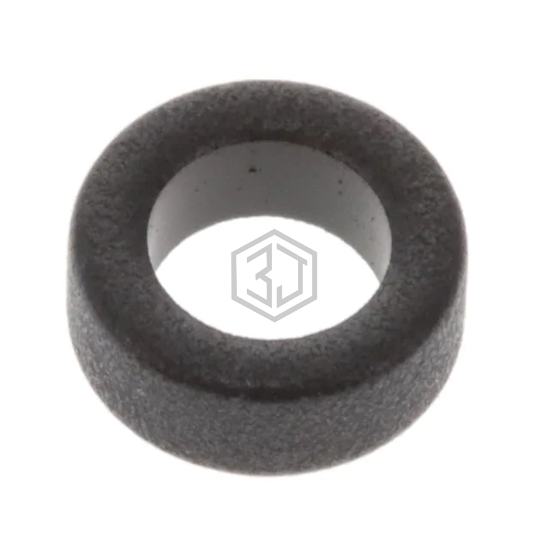

B64290P0037X049
FERRITE CORE
B64290P0037X049 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE. Key specifications: supplier device package R 6.3 x 3.8 x 2.5, material N49, tolerance ±25%.
In Stock: 282
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | R 6.3 x 3.8 x 2.5 |
| Material | N49 |
| Diameter | 0.248" (6.30mm) |
| Inductance Factor (Al) | 330 nH |
| Tolerance | ±25% |
| Gap | Gapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 1500 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 4.97 |
| Effective Length (le) mm | 15.21 |
| Effective Area (Ae) mm² | 3.06 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 46.5 |
| Finish | Parylene |
| Height | 0.098" (2.50mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B64290P0037X049 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE
The package type of B64290P0037X049 is R 6.3 x 3.8 x 2.5.
The material of B64290P0037X049 is N49.
The tolerance of B64290P0037X049 is ±25%.
