B64290P0036X830

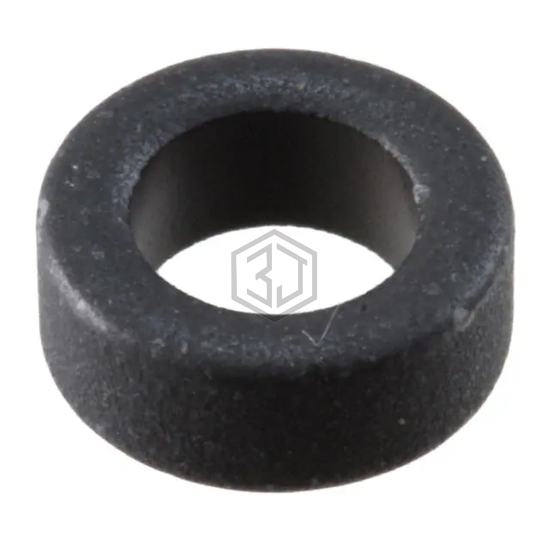

FERRITE CORE TOROID 700NH N30
B64290P0036X830 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 700NH N30. Key specifications: material N30, tolerance ±25%.
In Stock: 11,047
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | N30 |
| Diameter | 0.158" (4.02mm) |
| Inductance Factor (Al) | 700 nH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 4300 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 7.7 |
| Effective Length (le) mm | 9.63 |
| Effective Area (Ae) mm² | 1.25 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 12 |
| Finish | Parylene |
| Height | 0.064" (1.62mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B64290P0036X830 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 700NH N30
The material of B64290P0036X830 is N30.
The tolerance of B64290P0036X830 is ±25%.
